CPU: MediaTek MT6771 P60 AI Architecture: ARM 4xCortex-A73 up to 2.0GHz + ARM 4xCortex-A53 up to 2.0GHz OS : Andriod 9.0 Memory : 4GB+64GB/6GB+128GB Network Support : 2G/3G/4G Full Network Wireless connectivity : WiFi/Bluetooth/GPS/Beidou
Product introduction
XY6771 is an MTK platform-based, industrial-grade high-performance, 4G AI Android smart module running Android 9.0 OS, supporting LTE-FDD (CAT-7)/LTE-TDD (CAT-7)/WCDMA/TD-SCDMA/EVDO/CDMA/GSM and other standards; supporting WiFi 802.11 a/b/g/n/ac, BT v2.1+EDR, 3.0+HS,v4.1+HS, GPS/GLONASS/BeiDou/Galileo/QZSS, etc.; multiple audio and video input/output interfaces and rich GPIO interfaces.
Network band
Type
Network band
LTE-FDD
B1/B2/B3/B5/B7/B8/B20(B17)/B28
LTE-TDD
B34/B38/B39/B40/B41
WCDMA
B1/B2/B5/B8
TD-SCDMA
B34/B39
EVDO/CDMA
BC0
GSM
B2/B3/B5/B8
DL CCA
B1/B3/B7/B38/B39/B40/B41
DL NCCA
B3/B40/B41
Inter CA
B1+B3 B3+B5 B1+B5 B39+B41
UL CCA
B3/B38/B39/B40/B41
WiFi 802.11a/b/g/n/ac
2400～2483.5MHz/5725～5850MHz/5925MHz
BTv2.1+EDR,3.0+HS,V5.0
2400～2483.5MHz
GNSS
GPS/GLONASS/BeiDou

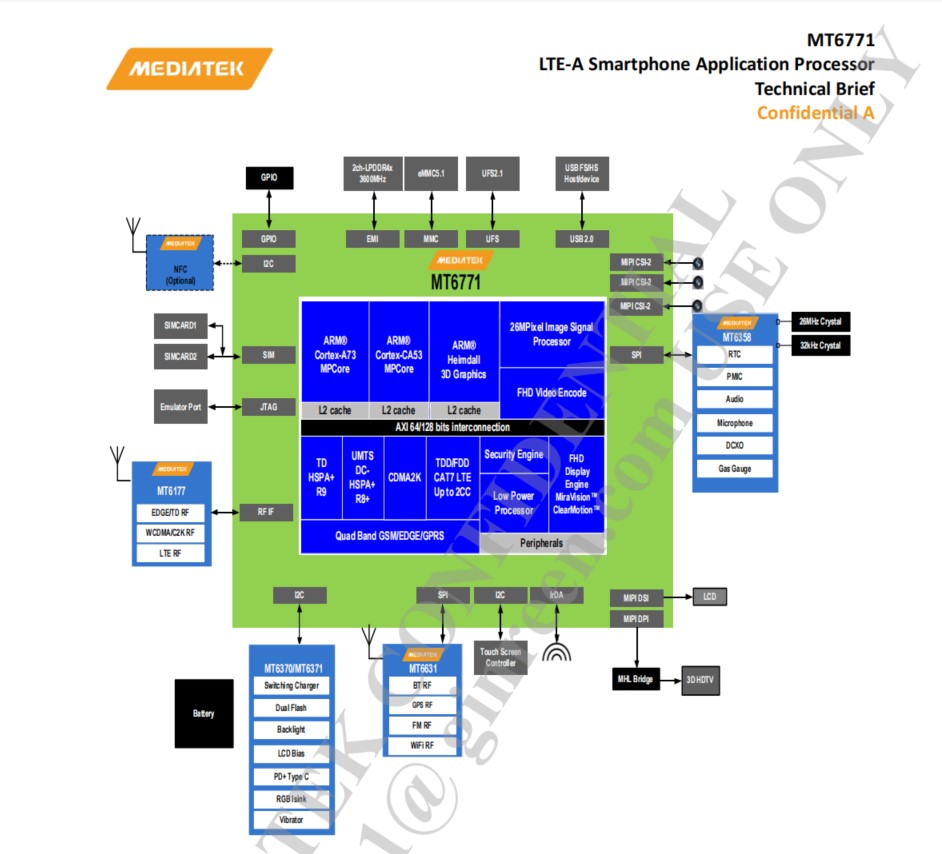

Main performance parameters
Performance
Description
Application Processors
4xCortex-A73 up to 2.0GHz + 4xCortex-A53 up to 2.0GHz
GPU
ARM Mali G72 MP3 700MHz
Modem Processor
MIPS32 processor ARM maximum frequency 864MHz256KB L2
Electricity supply
VBAT supply voltage range: 3.5V~4.35V Typical supply voltage: 4.2V
SMS
Text with PDU mode point-to-point MO and MTSMS broadcast SMS storage: default SIM
AT command
Not supported
LCM interface
4 groups of MIPI_DSI, each group supports up to 1.2Gbps rate; supports FHD+ (2160X1080) up to 2400X1080 (4 groups of MIPI_DSI); 24bit color depth
Camera interface
4 groups of MIPI_CSI, each group supports up to 2.5Gbps rate, can support 2 cameras; rear camera using 4 groups of MIPI_CSI, supports up to 32M@30fps front camera using 4 groups of MIPI_CSI, supports up to 32M@30fps front and rear cameras can support dual recording, picture-in-picture function
Audio Interface
Audio input: 3 groups of analog microphone input 1 way as a headset MIC input, the other two are normal call noise reduction MIC audio output: AB class stereo headphone output AB class differential earpiece output AB class differential output to external audio amplifier
USB interface
Support USB2.0 high-speed mode, data transfer rate up to 480Mbps for software debugging and software upgrades, etc. Support USB OTG
USIM card interface
2 groups of USIM/SIM card interface support: 1.8V and 3V support dual SIM card dual standby
SDIO interface
Support SD/SDHC/MS/MSPRO/MMC/SDIO2.0 or 3.0 4bit SDIO support hot-swap
I2C interface
4 groups of I2C, maximum rate up to 400K, when using I2C DMA the maximum speed can reach 3.4Mbps, for TP, Camera, Sensor and other peripherals
ADC interface
Two channels for general purpose ADC,Input range=0.05~1.45V
Antenna Interface
MAIN antenna, DRX antenna, GNSS antenna, WIFI/BT antenna interface
Physical Characteristics
Size: 40.5±0.15×50.5±0.15×2.8±0.2 mm Interface: LCC Warpage: <0.3mm Weight: 10.9g
Temperature range
Normal working temperature: -20°C ~ +70°C Extreme working temperature: -25°C and +80°C 1) Storage temperature: -40°C ~ +85°C
