XY6785CD 4G Android core board (MT6785 Helio G95 platform)

CPU: MediaTek MT6875
Architecture: ARM 2xCortex-A76 up to 2.0GHz + ARM 6xCortex-A55 up to 2.0GHz
OS : Andriod 12.0 & Andriod 13.0
Memory : 4GB+64GB/6GB+128GB/8GB+256GB
Network support : 2G/3G/4G full network access
Wireless connectivity : WiFi/Bluetooth/GPS/Beidou

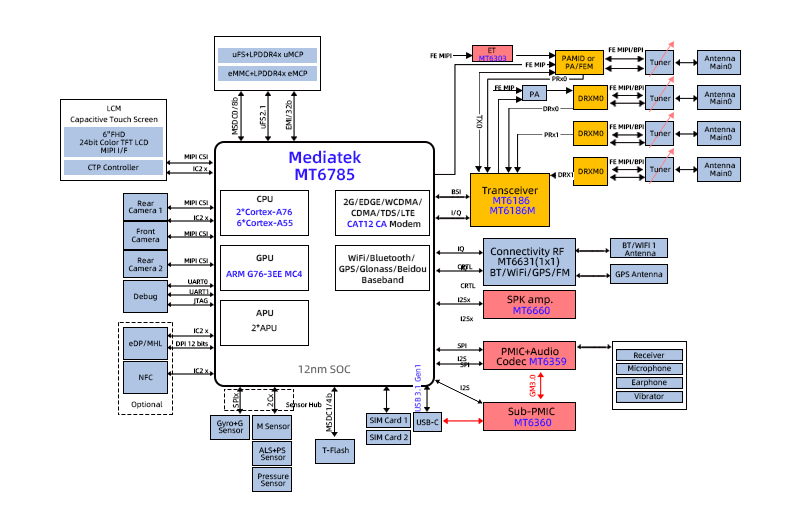

Product introduction

MT6785 is an MTK-based, industrial-grade, high-performance, 4G Android smart module running android12.0 & android13.0 operating system, supporting LTE-FDD(CAT-12)/LTE-TDD(CAT-12)/WCDMA/TD-SCDMA/EVDO/CDMA/GSM and other It supports WiFi 802.11 a/b/g/n/ac, BT v2.1+EDR, 3.0+HS, v4.1+HS, 5.0 LE, GPS/GLONASS/BeiDou/Galileo/QZSS, etc. It has multiple audio and video input/output interfaces and rich GPIO interfaces.

Network band

TypeNetwork band
LTE-FDD B1/B2/B3/B5/B7/B8/B20(B17)/B28
LTE-TDD B34/B38/B39/B40/B41
WCDMAB1/B2/B5/B8
TD-SCDMAB34/B39
EVDO/CDMABC0
GSMB2/B3/B5/B8
DL CCAB1/B3/B7/B38/B39/B40/B41
DL NCCAB3/B40/B41
Inter CAB1+B3 B3+B5 B1+B5 B39+B41
UL CCAB3/B38/B39/B40/B41
WiFi 802.11a/b/g/n/ac2400~2483.5MHz/5725~5850MHz/5925MHz
BTv2.1+EDR,3.0+HS,V5.02400~2483.5MHz
GNSSGPS/GLONASS/BeiDou

Main performance parameters

PerformanceDescription
Application Processors2xCortex-A76 up to 2.0GHz + 6xCortex-A55 up to 2.0GHz
GPUARM G76-3EE MC4
Modem ProcessorMIPS32 processor ARM maximum frequency 864MHz256KB L2
Electricity supplyVBAT supply voltage range: 3.5V~4.35V Typical supply voltage: 4.2V
SMSText with PDU mode point-to-point MO and MTSMS broadcast SMS storage: default SIM
AT commandNot supported
LCM interface4 groups of MIPI_DSI, each group supports up to 1.2Gbps rate; supports FHD+ (2160X1080) up to 2400X1080 (4 groups of MIPI_DSI); 24bit color depth
Camera interface4 groups of MIPI_CSI, each group supports up to 2.5Gbps rate, can support 2 cameras; rear camera using 4 groups of MIPI_CSI, supports up to 32M@30fps front camera using 4 groups of MIPI_CSI, supports up to 32M@30fps front and rear cameras can support dual recording, picture-in-picture function
Audio InterfaceAudio input: 3 groups of analog microphone input 1 way as a headset MIC input, the other two are normal call noise reduction MIC audio output: AB class stereo headphone output AB class differential earpiece output AB class differential output to external audio amplifier
USB interfaceSupport USB2.0 high-speed mode, data transfer rate up to 480Mbps for software debugging and software upgrades, etc. Support USB OTG
USIM card interface2 groups of USIM/SIM card interface support: 1.8V and 3V support dual SIM card dual standby
SDIO interfaceSupport SD/SDHC/MS/MSPRO/MMC/SDIO2.0 or 3.0 4bit SDIO support hot-swap
I2C interface4 groups of I2C, maximum rate up to 400K, when using I2C DMA the maximum speed can reach 3.4Mbps, for TP, Camera, Sensor and other peripherals
ADC interfaceTwo channels for general purpose ADC,Input range=0.05~1.45V
Antenna InterfaceMAIN antenna, DRX antenna, GNSS antenna, WIFI/BT antenna interface
Physical Characteristics Size: 40.0±0.15×50.0±0.15×2.5±0.2 mm Interface: LCC Warpage: <0.3mm Weight: 10.9g
Temperature rangeNormal working temperature: -20°C ~ +70°C Extreme working temperature: -25°C and +80°C 1) Storage temperature: -40°C ~ +85°C
Software Upgradevia USB
RoHSRoHS compliant
